Spinal Cord

The exact function of the terminal nerve in human is still under investigation, which is hampered by its small size and proximity to the olfactory nerve. For mouse and other animals at least, it is connected to the vomeronasal organ (vestige in human), which leads to a pathway for controlling sexual arousal.

Spinal Nerve(s)
Innervated Body Part(s)  & Symptom(s) of injury
C1 nerve supplies
Head and Neck
Quadriplegia at C1 dislocation

C2-C4 nerve root supply
Breathing problem resulting from lesion

C5 roots
Deltoids, biceps
No control at wrist or hand with lesion

C6 root
Wrist extenders
No hand function

C7-T1 roots
Triceps, hand
dexterity problems with hand and fingers

Chest muscles
Paraplegia, poor trunk control

Abdominal muscles

Lumbar and Sacral
Leg muscles, bowel, bladder, sexual organs
Decreasing control of hip flexors and legs, dysfunction of bowel, bladder, and sex

Table 04 Symptom(s) of Spinal Cord Injury

Note: Other effects of SCI may include low blood pressure, inability to regulate blood pressure effectively, reduced control of body temperature, inability to sweat below the level of injury, and chronic pain.

Autonomic Nervous System


One division of the autonomic nervous system, called the tem, dominates in times of stress. It controls the "fight or flight" reaction, increasing blood pressure, heart rate, breathing rate, and blood flow to the muscles. Another division, called the parasympathetic nervous system, has the opposite effect. It conserves energy by slowing the heartbeat and breathing rate, and by promoting digestion and elimination (of waste). Most glands, smooth muscles, and cardiac muscles constantly get inputs from both the sympathetic and parasympathetic systems. The CNS controls the activity by varying the ratio of the signals. Depending on which motor neurons are selected by the CNS, the net effect of the arriving signals

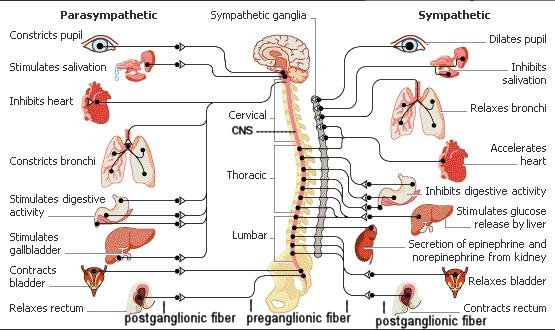

Figure 07 ANS Side View [view large image]

will either stimulate or inhibit the organ. Figure 07 shows the various organs and actions, which are related to the two different divisions. Motor fibers that govern involuntary responses, do not lMotor fibers that govern involuntary responses, do not lead directly to the organs they innervate. Instead, they make their trips in two stages. The first set of fibers leads from the CNS to ganglia (which are collections of nerve cell bodies) that lie outside

Autonomic nerves

the CNS (the preganglionic fibers). At the ganglia the fibers form synaptic junctions with the dendrites of as many as twenty different cell bodies. The axons of these cell bodies form a second set of fibers, the postganglionic fibers. It is these postganglionic fibers that lead to the organs.autonomic nervous system form two lines running down either side of the spinal column. They are outside the bony vertebrae. These two lines of ganglia outside the column resemble a pair of long beaded cords. At the lower end, the two cords join and finish in a single central stretch. These lines of ganglia are sometimes called the sympathetic trunks (used by the sympathetic nervous system). Not all ganglia are located in the sympathetic trunks. Some are not; and it is possible for a preganglionic fiber to go right through, making no synaptic junction there at all, joining instead with ganglia located in front of the vertebrae. For the parasympathetic nervous system, some of the ganglia separating the preganglionic fibers from the postganglionic fibers are actually located within the organ the nerve is servicing. In that case, the preganglionic fiber runs almost the full length of the total track, whereas the postganglionic fiber is at most just a few millimeters long.

The splanchnic nerves, which originate from some of the thoracic nerves, have their preganglionic fibers ending in a mass of ganglia lying just behind the stomach. It represents the largest mass of nerve cells that is not within the CNS and is sometimes called the "abdominal brain". It is a vital spot to be protected during boxing.

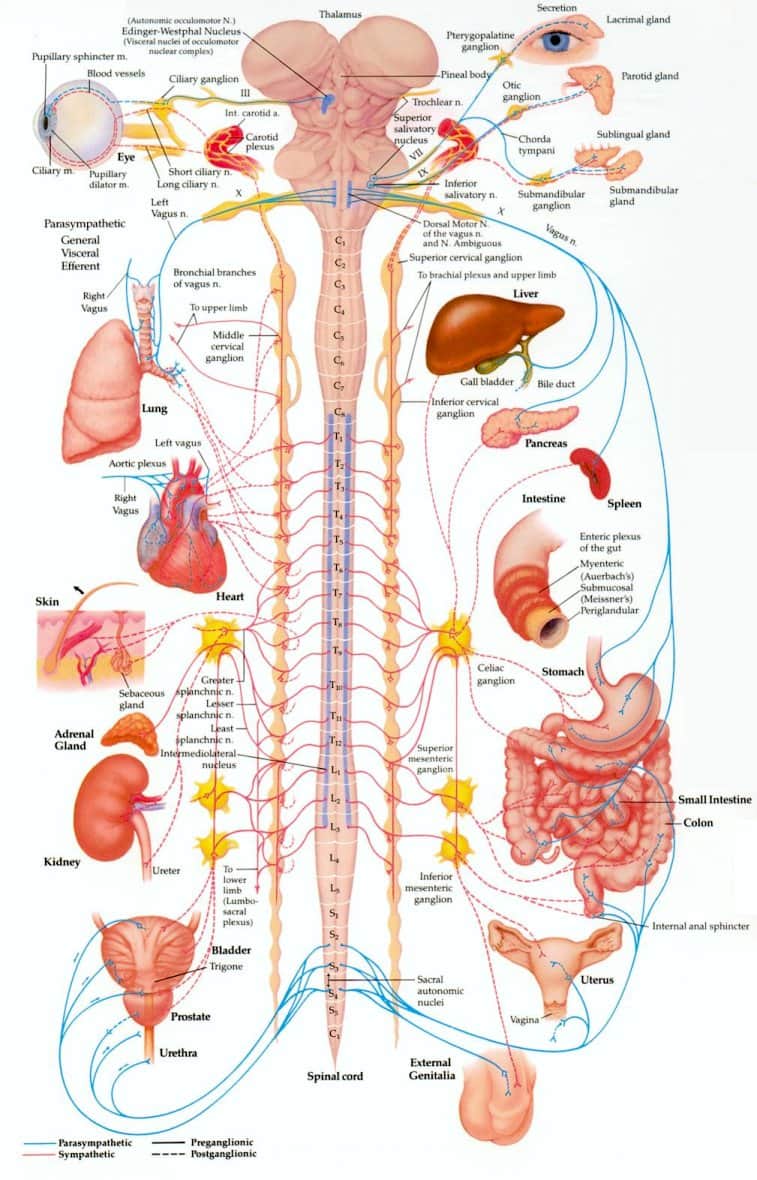

Figure 08 ANS Front View [view large image]

Figure 08 is the front view of a more detailed ANS anatomy.
